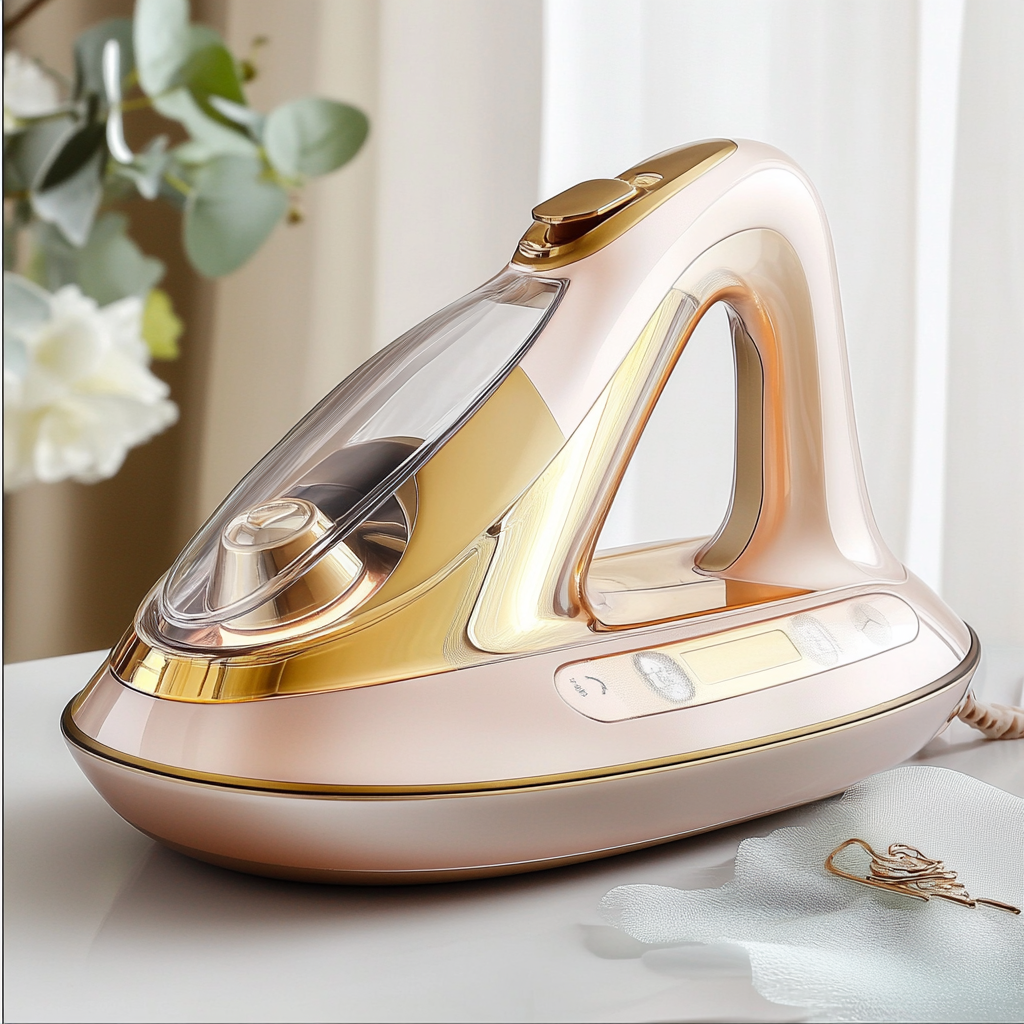

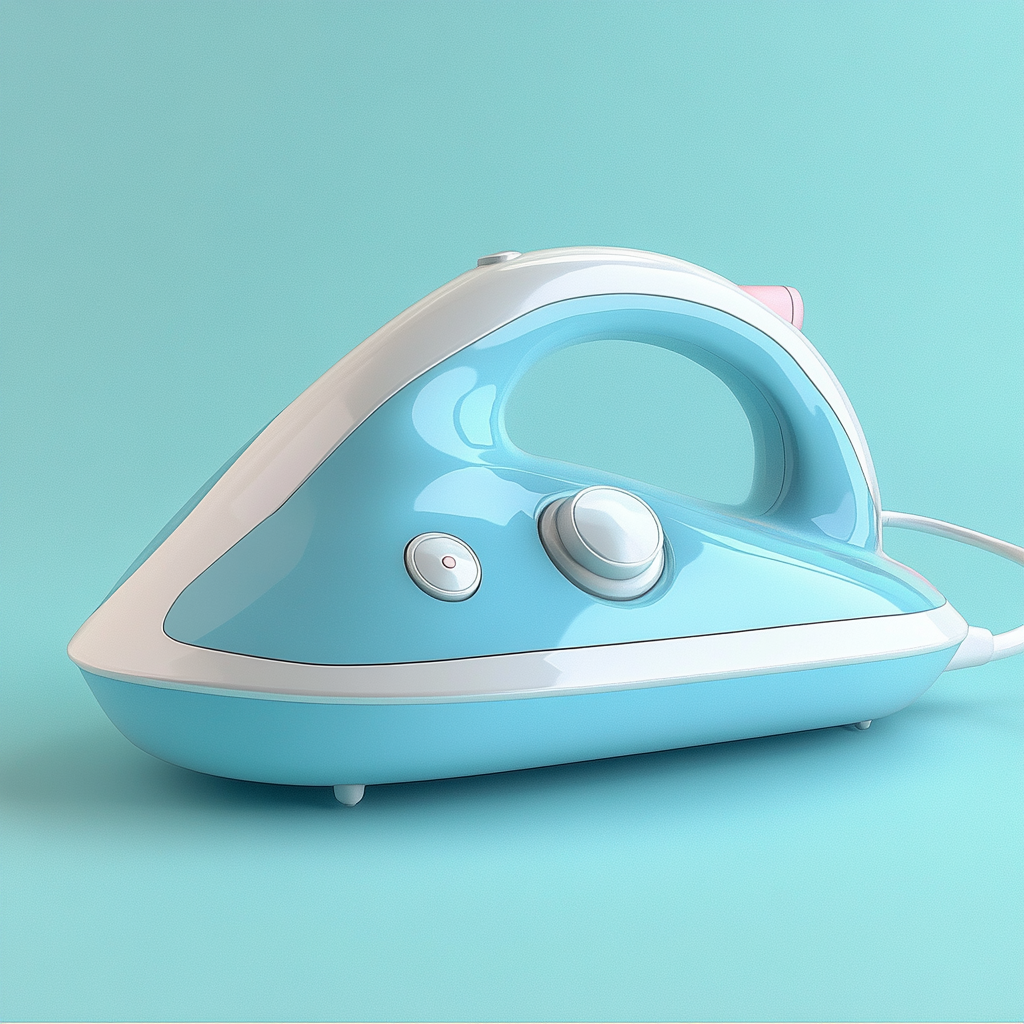

Texin — Electric Iron Injection Molding Shells Built for Safety, Heat and Performance

An electric iron injection molding shell must meet tough, sometimes conflicting demands: high heat resistance near the soleplate, impact and scratch resistance for the exterior, reliable snap fits and cable strain reliefs, attractive finish and consistent color, plus electrical safety and flame‑retardant performance. At Texin we design and manufacture electric iron injection molding shells that balance all these needs — from prototype to full production — using proven materials (PC, PBT/PET+GF, PA+GF, heat‑resistant ABS) and advanced molding technology.

Why electric iron injection molding shell requirements are high

• Localized high temperatures: parts close to the heating element need engineering plastics with strong thermal stability (PBT/PET+GF, PA+GF, PC/ABS) rather than general purpose plastics.
• Dimensional stability: internal mounts, latches and soleplate interfaces require low shrinkage and low warpage so the iron assembles correctly every time.
• Safety and flame retardancy: many irons require UL94‑rated materials (V‑0/V‑2) for electrical safety.
• Appearance and durability: housing must resist scratches, discoloration and yellowing from heat and steam while keeping consistent gloss or texture.
• Manufacturability and cost: designs must be optimized for efficient cycles and material use without compromising performance.

Texin capabilities for electric iron injection molding shell

• Material expertise: We work with PC, PC/ABS, PBT, PBT/PET+GF, PA+GF, heat‑resistant ABS and high‑gloss PP for non‑thermal areas. For extreme demands we advise PPS or PEEK. (Reference: PBT/PET+GF, PBT+GF, PC/ABS recommended near heat zones.)
• Advanced molding: precision injection molding, two‑shot/overmolding for soft grips (TPE/TPU), IMD/IML for durable decoration, and gas/water assist to reduce sink and material use in thicker sections.
• Prototyping & validation: SLA/SLS/FDM rapid prototyping for fit/form checks before tooling.
• Compliance & testing support: material data (MSDS), RoHS/REACH declarations and coordination with third‑party labs for UL / SGS / TUV testing as required.

Common buyer / designer questions — concise answers Q: What material should I use for the housing far from the soleplate?
A: ABS or high‑gloss PP deliver good aesthetics and impact resistance for exterior surfaces. ABS is paintable and suits plated or high‑gloss finishes.

Q: What material for parts close to the heating element or steam path?
A: Use engineering plastics: PBT or PBT/PET with glass fiber (PBT/PET+GF), PC/ABS blends, or PA+GF for thermal stability and dimensional accuracy. These materials handle higher operating temperatures better than general‑purpose plastics.

Q: What about the transparent water reservoir or window?
A: Polycarbonate (PC) is the preferred transparent option — high impact resistance and heat tolerance (PC withstands higher temps than GPPS/AS). For long‑term clarity, choose UV/anti‑yellowing grades.

Q: How do you meet flame‑retardant requirements?
A: We recommend UL94‑rated grades (V‑0 or V‑2) where required. Flame‑retardant formulations or masterbatches can be used; Texin helps select the right grade and supports third‑party flammability testing.

Q: Can you produce soft grips or integrated seals?
A: Yes — overmolding (TPE/TPU onto ABS or PC/ABS) creates ergonomic grips and seals in one assembly step, improving feel and assembly speed.

Q: How do you prevent warpage and ensure snap‑fit accuracy?
A: Through material selection, gate location, uniform wall thickness, rib design and controlled mold temperature. For tight tolerances we use precision tooling and process control.

Q: Are decorative finishes like textured shells or IMD possible?
A: Yes. IMD/IML provides long‑lasting decorated surfaces without post‑painting; one‑shot texturing in the mold gives consistent texture and scratch resistance. For plated effects, appropriate mold texturing and pre‑treatment are used followed by secondary plating.

Q: Can you support regulatory documents and material certificates?
A: Texin supplies material documentation (MSDS) and RoHS/REACH declarations and coordinates third‑party testing (UL, SGS, TUV) when clients request certification packages.

Design considerations we recommend (practical tips)

• Wall thickness: keep sections uniform to reduce sink/warp; typical household‑appliance walls use 1.5–3.0 mm depending on material and function.
• Heat barriers: segregate hot‑zone parts (use PBT/PA) from exterior cosmetic shells (ABS/PP) and consider insulating ribs or metal clips for heat spread control.
• Snap‑fit features: design with sufficient radii and rib supports; allow ±0.2 mm as a realistic target for many fit features unless precision molding is specified.
• Decoration: use IMD for high‑wear areas or coatings for UV protection on transparent components.

Production flow & support

• Prototype (SLA/SLS) → DFM review → tooling → sample/validation → pilot run → mass production.
• Texin supports design for manufacturability (DFM), moldmaking oversight, process optimization, and full traceability for production runs.

Summary：

An electric iron injection molding shell must combine heat resistance, mechanical strength, safety and attractive finish — and those goals are often competing. Texin brings material know‑how (PBT, PC/ABS, PA+GF, ABS), advanced molding (precision injection, overmolding, IMD, gas/water‑assist) and compliance support to deliver reliable, production‑ready electric iron injection molding shells from prototype to mass production. If you’re developing an iron project, Texin can help with material selection, DFM, prototyping and the certification path — contact us to discuss your electric iron injection molding shell requirements.
