Technical Specifications for Electric Kettle Injection Molding Shells

Key Takeaways

• Choose materials like polycarbonate and PBT for electric kettle shells. These materials ensure heat resistance and mechanical strength.
• Verify UL94 certification for kettle shells. This certification confirms that the shell meets strict flame-retardant standards.
• Maintain consistent wall thickness between 2.0 mm and 2.5 mm. This range prevents deformation and enhances durability.

Key Specs Overview

Essential Requirements

Manufacturers must consider several essential requirements when designing electric kettle shells. These requirements ensure that the final product performs reliably and meets consumer expectations. The shell must withstand high temperatures and resist deformation. It must also provide electrical insulation to protect users from electric shock. Food safety is another critical factor. The shell must not release harmful substances when exposed to heat or water.

Texin focuses on material selection and advanced injection molding techniques to meet these requirements. Engineers choose plastics like polycarbonate (PC), PBT, and PC/ABS for their heat resistance and mechanical strength. These materials help the shell maintain its shape and integrity during repeated use. The shell must also pass flame-retardant tests, such as the UL94 standard, to ensure safety in case of electrical faults.

Tip: Always check for UL94 certification when evaluating electric kettle shells. This certification indicates that the shell meets strict flame-retardant standards.

The design must allow for precise assembly. Injection molding enables manufacturers to create shells with tight tolerances, which ensures that all parts fit together seamlessly. This process also supports the addition of features like ribbing and reinforcement, which improve structural strength.

Impact on Quality and Safety

The technical specifications of electric kettle shells have a direct impact on product quality and user safety. High-quality shells resist scratches and yellowing, maintaining their appearance over time. Texin uses advanced injection molding methods to achieve smooth and durable finishes. Options like In-Mold Decoration (IMD) and In-Mold Labeling (IML) allow for high-resolution graphics and branding without the need for post-painting.

A shell with consistent wall thickness prevents weak spots and reduces the risk of cracking. Engineers use injection molding to control wall thickness and avoid common issues like warpage. This attention to detail ensures that the shell remains strong and reliable throughout its lifespan.

Safety remains a top priority. The shell must insulate electrical components and prevent accidental contact. Food-grade plastics ensure that the shell does not contaminate water or other contents. Texin’s commitment to quality control means that every shell undergoes rigorous testing before reaching the market.

Injection molding plays a vital role in achieving these specifications. The process allows for consistent production, minimal defects, and reliable performance. Texin’s expertise in injection molding ensures that every shell meets industry standards for safety and quality.

Injection Molding Materials

Recommended Plastics

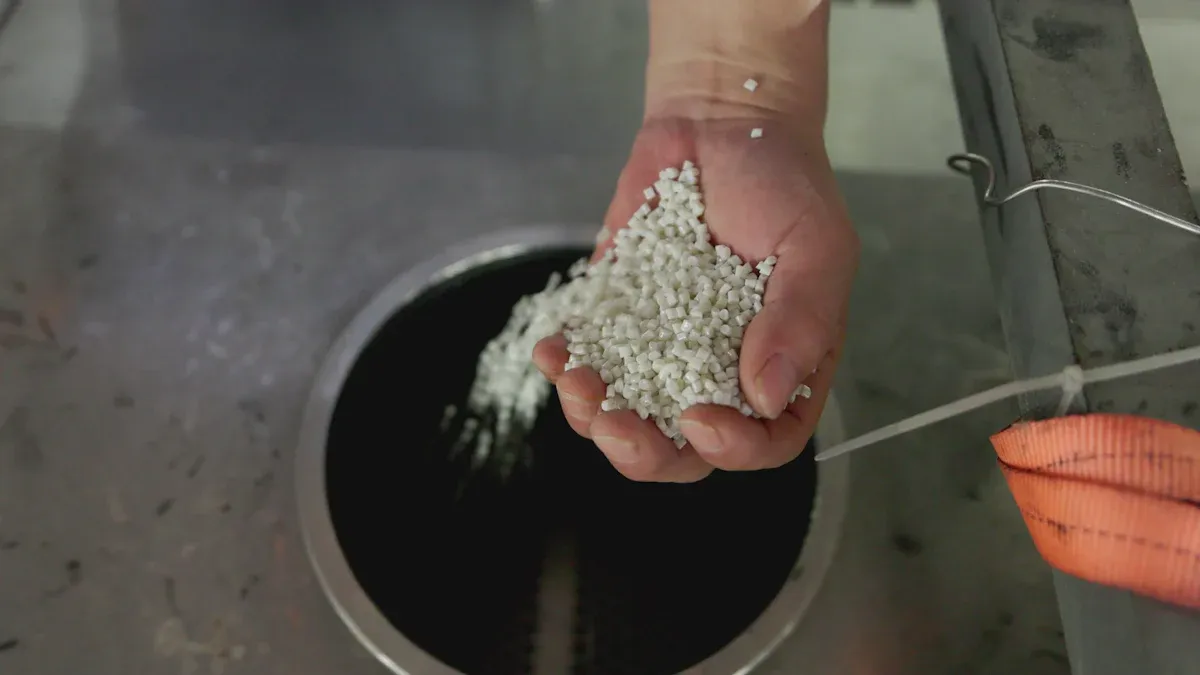

Texin selects high-performance materials for electric kettle injection molding. The most common choices include polycarbonate (PC), polybutylene terephthalate (PBT), and PC/ABS blends. These materials offer excellent heat resistance and mechanical strength. Engineers rely on these plastics because they maintain their shape under high temperatures. PC provides clarity and toughness. PBT delivers dimensional stability. PC/ABS blends combine impact resistance with processability.

Note: Choosing the right materials ensures that injection molded parts meet both safety and durability standards.

Material Properties

Each material used in injection molding brings unique properties to the final product. PC, PBT, and PC/ABS all withstand repeated heating and cooling cycles. These materials resist warping and cracking, which is essential for injection molded parts in electric kettles. Texin ensures that all materials comply with UL94 flame-retardant standards. This certification means the plastic injection molding process produces shells that resist ignition and slow flame spread.

Food safety also plays a key role. All materials used in injection molding must meet food-contact regulations. This protects users from harmful substances. Engineers test injection molded parts for chemical resistance and long-term durability. The result is a shell that looks good and performs well throughout its life.

Wall Thickness

Optimal Ranges

Wall thickness plays a critical role in electric kettle shell design. Engineers at Texin focus on achieving optimal wall thickness for every shell. The optimal wall thickness ensures that the shell withstands heat and mechanical stress. Most electric kettle shells require an optimal wall thickness between 2.0 mm and 2.5 mm. This range provides enough strength without adding unnecessary weight. A shell with optimal wall thickness resists deformation during heating cycles. Texin uses advanced injection molding to maintain optimal wall thickness throughout the shell.

A uniform wall thickness helps prevent weak spots. Engineers design molds to create uniform wall thickness across the entire shell. This approach reduces the risk of warpage and cracking. Uniform wall thickness also improves the appearance of the shell. Texin’s process allows for precise control of wall thickness, resulting in consistent quality.

Tip: Consistent wall thickness improves both durability and aesthetics.

Common Issues

Several issues can arise if wall thickness is not properly managed. Thin wall thickness may lead to cracking or deformation. Thick wall thickness can cause sink marks and increase material costs. Uneven wall thickness often results in warpage, which affects assembly and appearance. Engineers at Texin monitor wall thickness during production to avoid these problems.

A shell with incorrect wall thickness may fail safety tests. Texin’s quality control team inspects wall thickness at multiple stages. They use specialized equipment to measure wall thickness and ensure compliance with specifications. Proper wall thickness supports long-term performance and user safety.

Tolerances and Finish

Dimensional Tolerances

Texin engineers focus on achieving precise dimensional tolerances in every electric kettle shell. Tight tolerances ensure that each part fits together perfectly, which improves product reliability. The team uses advanced injection molding machines to control the dimensions of each shell. This process reduces the risk of gaps or misalignment during assembly. Consistent tolerances also help maintain the safety features of the kettle shell.

Tip: Accurate tolerances prevent leaks and ensure a secure fit for electrical components.

Texin’s quality control team measures each shell using specialized tools. They check for deviations and make adjustments to maintain high standards. The company’s commitment to precision helps deliver products that meet industry requirements.

Surface Finish Options

Texin offers a variety of surface finish options for electric kettle shells. The company uses In-Mold Decoration (IMD) and In-Mold Labeling (IML) to create vibrant graphics and branding directly on the shell. These finishes resist scratches and yellowing, which keeps the product looking new for longer. Engineers select finishes based on customer preferences and product requirements.

• IMD provides high-resolution images and patterns.
• IML allows for durable labels that do not peel or fade.
• Matte and glossy finishes are available for different aesthetic effects.

Texin’s advanced molding techniques produce smooth surfaces with minimal defects. The shells maintain their appearance even after repeated cleaning and use.

Note: A quality surface finish enhances both the look and durability of the electric kettle shell.

Structural & Safety

Heat Resistance

Heat resistance stands as a vital property for electric kettle shells. Engineers at Texin select materials that can endure high temperatures without losing strength. The injection molding process allows them to shape polycarbonate, PBT, and PC/ABS into shells that resist warping and deformation. These plastics maintain their structure even when exposed to boiling water and steam. Texin uses injection molding to create shells with uniform wall thickness, which helps distribute heat evenly. This approach prevents weak spots and extends the product’s lifespan.

Electrical Insulation

Electrical insulation protects users from electric shock. Texin engineers design shells using injection molding to ensure that the plastic acts as a barrier between electrical components and the user. The selected materials have high dielectric strength, which means they block the flow of electricity. During injection molding, the team pays close attention to the placement of assembly points and reinforcements. This careful design prevents accidental contact with wires or heating elements. Quality control checks confirm that every shell meets safety standards for electrical insulation.

Tip: Always verify that electric kettle shells pass insulation tests before use.

Food Safety

Food safety remains a top priority in electric kettle shell production. Texin uses food-grade plastics in the injection molding process. These materials do not release harmful chemicals when heated. Engineers test each batch for compliance with food-contact regulations. Injection molding enables precise control over the shell’s surface, reducing the risk of contamination. The smooth finish produced by injection molding makes cleaning easy and prevents bacteria buildup. Texin’s commitment to food safety ensures that every shell supports healthy and safe use.

Design Features

Ribbing & Reinforcement

Engineers add ribbing and reinforcement to electric kettle shells to increase strength. Ribbing consists of raised lines or grids molded into the plastic. These features help distribute stress and prevent deformation. Reinforcement supports the shell during heating and cooling cycles. Texin uses computer-aided design to place ribs in areas that need extra support. This approach reduces material usage while maintaining durability.

Tip: Ribbing improves structural integrity without adding much weight.

Draft Angles

Draft angles play a key role in injection molding. Designers add slight angles to the sides of the shell. These angles allow the molded part to release easily from the mold. Without draft angles, the shell may stick or warp. Texin recommends draft angles between 1° and 3° for most kettle shells. Proper draft angles reduce defects and speed up production.

Assembly Points

Assembly points connect different parts of the kettle shell. Engineers design these points for quick and secure assembly. Common assembly features include snap fits, screw bosses, and alignment tabs. Texin uses precision molding to create assembly points with tight tolerances. This ensures that each part fits perfectly and stays in place during use.

• Snap fits provide tool-free assembly.
• Screw bosses allow for strong mechanical connections.
• Alignment tabs help position parts accurately.

Note: Well-designed assembly points improve product reliability and user experience.

Injection Molding Process

Mold Design

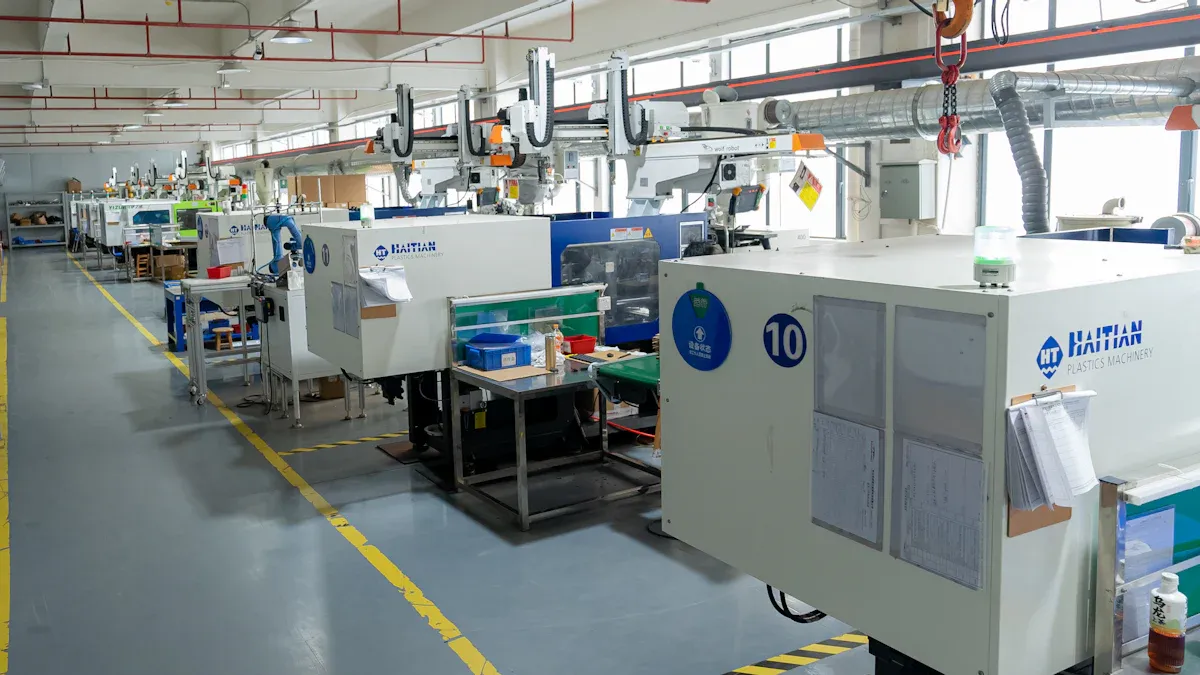

Texin engineers start the injection molding process by designing a precise mold. The mold shapes the electric kettle shell and determines its final appearance. They use advanced software to create a mold that supports features like ribbing, draft angles, and assembly points. Gas-assist and water-assist technology help form complex shapes inside the mold. Rapid prototyping allows engineers to test the mold before full production. The mold must withstand high pressure during the injection molding process. Texin’s team checks the mold for defects and ensures it produces shells with minimal warpage.

Cycle Time

Cycle time measures how long each injection molding process takes. Texin optimizes the process to reduce cycle time and increase efficiency. The mold opens and closes quickly, allowing molten plastic to fill the mold cavity. Engineers monitor the process to maintain consistent temperature and pressure. Short cycle times help Texin deliver large production volumes without sacrificing quality. The injection molding process includes cooling, which solidifies the shell inside the mold. Fast cycle times support rapid prototyping and mass production.

Tip: Short cycle times improve productivity and reduce manufacturing costs.

Quality Control

Quality control is essential in the injection molding process. Texin uses automated systems to inspect each shell after it leaves the mold. Engineers check for defects like warpage, uneven surfaces, and incorrect dimensions. The process includes measuring wall thickness and verifying assembly points. Texin’s end-to-end service covers every stage of the injection molding process, from mold design to final inspection. The team ensures each shell fits seamlessly and meets safety standards. Quality control helps Texin maintain a reputation for reliable electric kettle shells.

Injection Molding Cost Factors

Material Choice

Material selection plays a major role in determining injection molding cost. Engineers choose plastics based on heat resistance, strength, and food safety. Polycarbonate, PBT, and PC/ABS are popular options for electric kettle shells. Each material has a different price, which affects overall costs. Some materials require special handling during injection molding, increasing tooling costs. Food-grade plastics may have higher mold costs due to strict safety standards. Material choice also impacts cost per part, especially in high-volume production.

Tip: Selecting the right material can reduce injection molding cost and improve product quality.

Design Complexity

Design complexity influences injection molding cost in several ways. Complex shapes need advanced mold designs, which raise mold costs and tooling costs. Features like ribbing, draft angles, and assembly points add to the cost per part. Intricate designs may require longer cycle times, increasing costs for each production run. Engineers use computer-aided design to optimize molds and minimize unnecessary costs. Simple designs often result in lower injection molding cost and faster mass production.

Production Volume

Production volume directly affects injection molding cost. High-volume production lowers cost per part because fixed costs spread over more units. Mass production benefits from economies of scale, making each part less expensive. Low-volume production has higher costs per part due to fewer units and higher setup costs. Engineers calculate production volume to estimate total costs and plan manufacturing schedules. Companies choose high-volume production for popular products and low-volume production for custom or limited runs.

• High-volume production: Lower cost per part, efficient mass production.
• Low-volume production: Higher cost per part, suitable for prototypes or specialty items.

Note: Understanding production volume helps companies manage injection molding cost and optimize manufacturing strategies.

Following technical specifications for electric kettle shells improves safety, durability, and appearance. Texin’s expertise in injection molding delivers reliable, high-quality products at competitive costs. Manufacturers seeking dependable solutions can trust Texin’s advanced processes and customer support. Contact Texin to learn more about their electric kettle shell services.

FAQ

What materials does Texin use for electric kettle shell production?

Texin selects polycarbonate, PBT, and PC/ABS for shell production. These materials offer high part quality and meet tooling requirements for heat resistance and safety.

How does Texin ensure part quality during production?

Texin uses advanced tooling and strict quality control. Engineers monitor part quality at every stage of production to guarantee reliable shells for electric kettles.

What role does design for manufacturing play in tooling?

Design for manufacturing helps engineers optimize tooling. This process improves part quality and reduces production errors, resulting in efficient electric kettle shell production.
